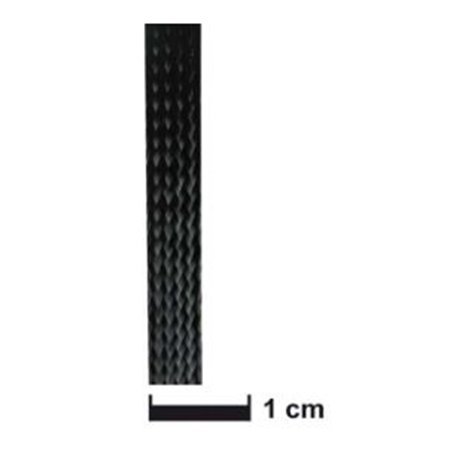

CARBONKOUS 7 MM LM

Diameter: from 4–10 mm
Thickness: 0.18 mm
Ends: 40

Technical data at 45° braid angle:
Diameter: 7 mm
Width flat:
 10 mm
Weight: 3.8 g/m

Application:
Torsion-proof pipes of various diameters. The sleeve diameter can be varied by clenching or stretching. Delivered in stretched condition.

Processing:
Use plenty of R&G release spray on core material (slide coating) and allow to dry. Pass sleeve over material and pull both ends for proper fit – fit under tension if necessary. Apply resin with a brush. The area to be processed can be warmed using a hairdryer if required. This will liquify the resin and impregnate the fibre quickly and safely. (Do not forget resin fumes – ensure that the room is well aired or wear a protective mask.) The core is gripped following hardening and the pipe removed. Small size components may be pre-frozen. In this way it is easier to remove the shrunken metal core.

Please note:
For technical reasons it is not possible to wind up sleeves in a fibre angle of 45°. The amounts of differ therefore on the length at 45°.

€ 6,22 (incl. btw)
Reference:
2668
Accessoires
Omschrijving

Diameter: from 4–10 mm
Thickness: 0.18 mm
Ends: 40

Technical data at 45° braid angle:
Diameter: 7 mm
Width flat:
 10 mm
Weight: 3.8 g/m

Application:
Torsion-proof pipes of various diameters. The sleeve diameter can be varied by clenching or stretching. Delivered in stretched condition.

Processing:
Use plenty of R&G release spray on core material (slide coating) and allow to dry. Pass sleeve over material and pull both ends for proper fit – fit under tension if necessary. Apply resin with a brush. The area to be processed can be warmed using a hairdryer if required. This will liquify the resin and impregnate the fibre quickly and safely. (Do not forget resin fumes – ensure that the room is well aired or wear a protective mask.) The core is gripped following hardening and the pipe removed. Small size components may be pre-frozen. In this way it is easier to remove the shrunken metal core.

Please note:
For technical reasons it is not possible to wind up sleeves in a fibre angle of 45°. The amounts of differ therefore on the length at 45°.
